4k latent fingerprint detection

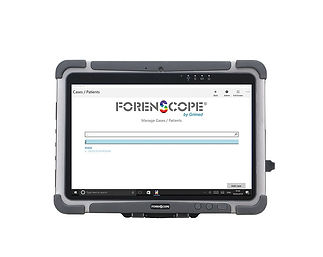

Portable Terminal

Imaging System

16.3 MP, 4K Display Feature UV (UVA-UVB-UVC) /VIS/IR
Camera Spectral Range 200 - 1100nm ±20nm
Camera Sensor Number of Effective Pixels: 4655x3515: 16.362.325 (pixels)
Camera Live Image :1920x1080
Full HD Picture Size mininum: 4640x3506: 16.267.840 (pixels), 46.5MB (48.803.574 Bayt)
4640x3506 resolution BMP and RAW Picture
1920x1080 Full HD MP4 and RAW Video recording
30mm F3.5 UV lens (Transmission Wavelenght (180 nm-1200nm)
4cm to infinity focus
Aparture: f /3.5
Digital Zoom Function which works with software

Operating System gives below functions

Real Time UV(UVA-UVB-UVC)/ VIS / IR Imaging
RAW or MP4 Video Recording
RAW or BMP Imaging
Quick Photo Click button
Real-time image swipe feature (Auto swipe on white fingerprints from the black background to the white background)
Advanced Case and Patient information search and archive platform
Image archive platform
Date assignment on images
Zooming on live image for detailed review
Image enhancement features
Convert and save recorded video and images in RAW format and export them.
Ability to record videos recorded in RAW format in built-in software and save the photo in RAW format as a new photo.
Detailed Reporting Feature
Transfers detailed reports or images via USB or TIF card

Professional Special Light Filter

Multispectral Changeable Multispectral Light Lenses Groups

1. UVC Light Group
2. UV-IN Light Group
3. UV-OUT Light Group
4. UV-Pw Light Group
5. Blue Light Group
6. Green Light Group
7. Infrared Light Group

Hand Light (Optional)

Battery Power Source

Instant Replaceable Battery Power Center
13.400 mAh high-capacity lithium battery
Non-stop real mobility, light and lens uptime to 4.5 hours and tablet uptime 2.5 hours***
Fast-charging Type-C input.

FTU40
